搭配使用DP7200(升压模块)
1. Features
Ø Compliant with IEEE802.3at Type 1(af) & Type 2

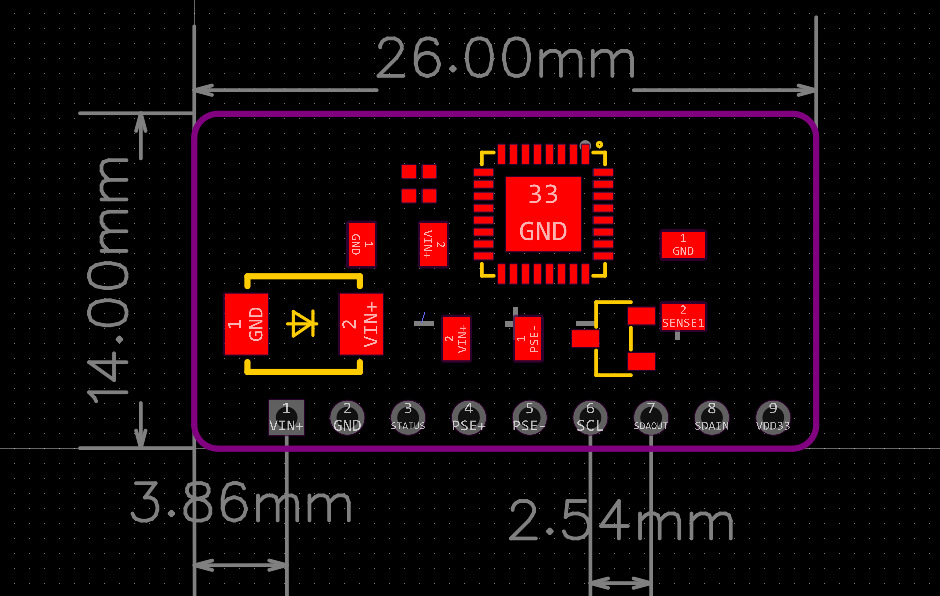

Ø Small SIL package size - 26mm (L) x 14mm (H)
Ø Low cost
Ø Output power up to 30W
Ø Minimal (low cost) external components required
Ø Over-current and short circuit protection
Ø Industrial Temperature Range
Ø Sdapo “design-in” assistance
Pin Description
|
Pin # |
Name |
Description |
|
1 |
VIN+ |
Main Power Supply. This pin connects to an isolated 44V to 57V supply; relative to the GND. |
|
2 |
GND |
GND. This pin is the return path for the isolated VIN+ power supply. |
|
3 |
STATUS |
Status Output. This output shows the status of the DP6100. |
|
4 |
PSE+ |
Port Output. This output pin monitors the line and supplies power to valid powered device. |
|
5 |
PSE- |
Port Output Return. This pin is the return path for PSE+. |
|
6,7,8,9 |
NC |
No Connection. |

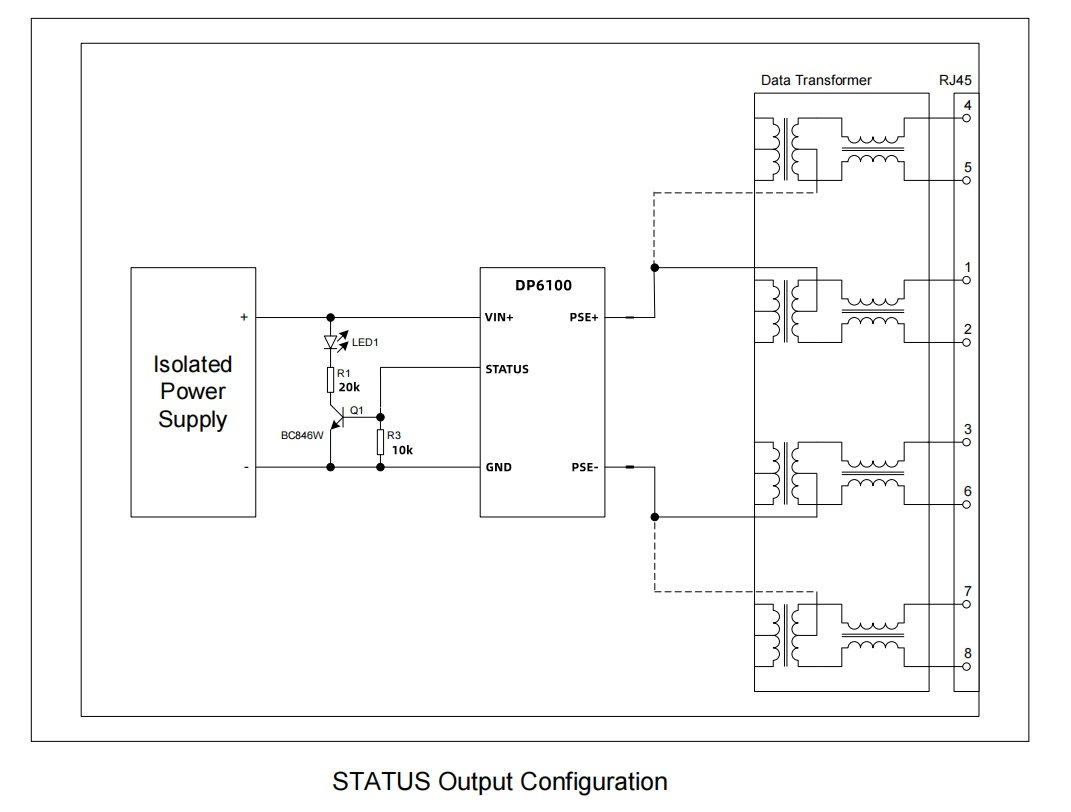

Typical Connection Diagram
